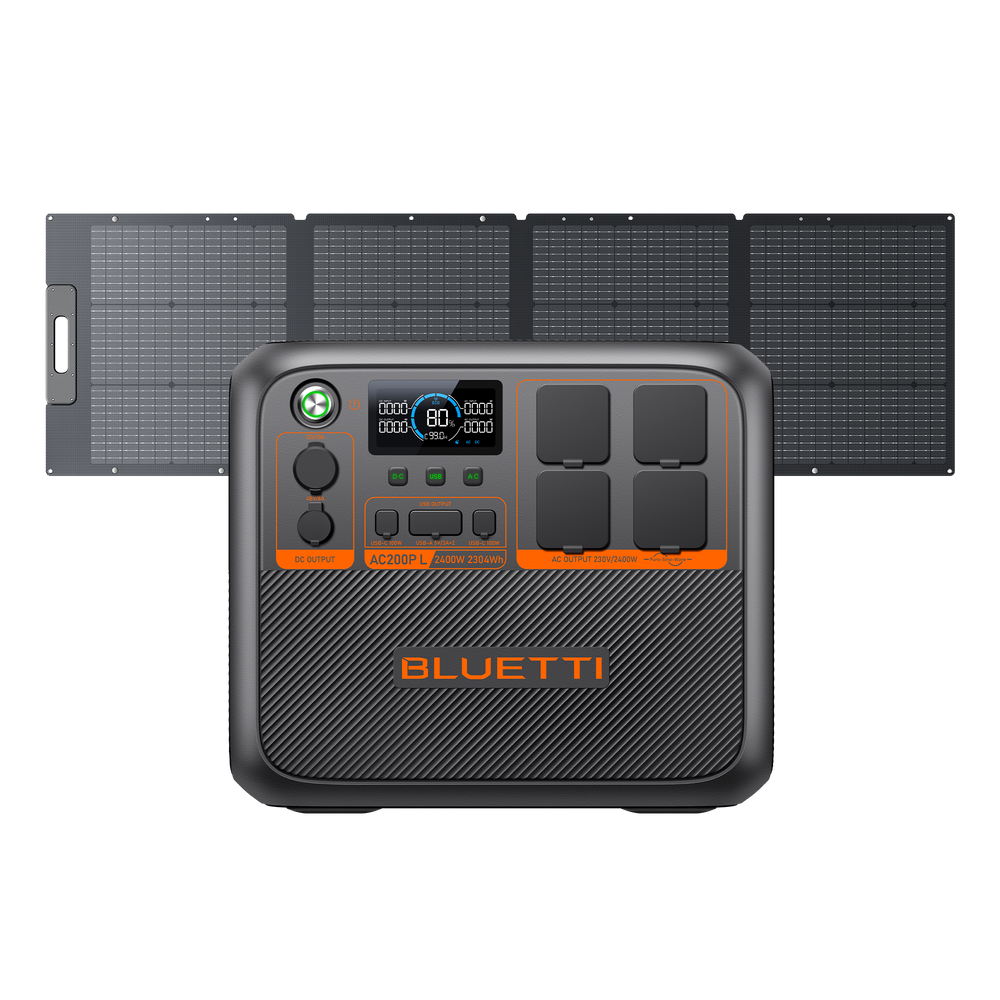

BLUETTI AC200P L Portable Power Station | 2,400W 2,304Wh

FAQS

• Q1: How many expansion batteries can I connect with the AC200P L?

  A:

  AC200P L + 2*B210P = 6,604Wh;
  AC200P L + 1* B230 = 4,352Wh;
  AC200P L + 2* B300 = 8,448Wh.

• Q2: Can I connect third-party expansion batteries to AC200P L?

  A:

  No.

• Q3: Does AC200P L support App control?

  A:

  Yes. Once connected via Bluetooth or WiFi, the BLUETTI App enables you to control the AC200P L remotely, like switching the working mode and upgrading the firmware.

• Q4: Can I use AC200P L as a UPS?

  A:

  Yes. Within 20ms switching time.

• Q5:What kind of solar panels should I choose for AC200P L?

  A:

  Open Circuit Voltage: 12-145V
  Input Power: 1,200W Max.
  Include MC4 connectors.
  Highly Recommended:
  6x BLUETTI PV120: ≈3.5hrs.
  5x BLUETTI PV200: ≈2.5hrs.
  3x BLUETTI PV350: ≈2.5hrs
  * For reference ONLY.

• Q6: Is the AC200L power station waterproof?

  A:

  No. So please do NOT store it in a humid environment for a long time for optimal performance.

• Q7: Can it charge and discharge at the same time?

  A:

  Yes. It supports pass-through charging.

• Q8: Can I charge or discharge AC200P L insub-zero temperatures?

  A:

  You can charge the AC200L to power your devices in cold weather, but avoid recharging it below freezing. The temperature ranges for AC200P L are:
  Charge: 0-40℃ (32-104℉);
  Discharge: -20-40℃ (-4-104℉);

• Q9: What appliances can AC200P L work wellwith?

  Add up the total wattage of your devices and ensure it doesn't exceed AC200P L’s rated 2,400W.

• Q10: How long can it run my device?

  Running time = Battery capacity × DoD × η ÷ Device rated power
  DoD refers to Depth of Discharge and η is local inverter efficiency. For AC200P L, DoD and η are 95% and 93%. If you run a 1,000W microwave oven with it, the running time will be:
  2,304Wh × 90% × 90% ÷ 1,000W ≈ 1.87hrs
  Note:
  1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
  2) The above data is for reference ONLY.

• Q11: What is the maximum input of theBLUETTI AC200P L?

  2,400W via AC outlet and solar panels simultaneously.

• Q12: Can I lay on its side to save space?

  No. this may damage the internal structure. Please keep it upright during storage or moving.

• Q13: Can I hot-swap expansion batteries to AC200PL?

  Yes. You can easily swap battery packs for continuous power use, and the system can hold two batteries at once.

• Q14: Is it possible to replace the built-inbattery?

  No. If the battery pack is faulty or even dead, please contact BLUETTI Support for further assistance.
