What Is An MPPT Solar Charge Controller,MPPT VS PWM Solar Regulators: Which Is Better?

As renewable energy continues to gain popularity, more and more people are turning to solar power as a clean and sustainable source of electricity. However, for those new to solar technology, the terminology and equipment can be overwhelming. One crucial component of a solar power system is the charge controller, which regulates the charge going into the batteries. In recent years, the Maximum Power Point Tracking (MPPT) solar charge controller has gained traction, touted as a more efficient alternative to the traditional Pulse Width Modulation (PWM) solar regulator. In this article, we will delve into what an MPPT solar charge controller is, how it differs from a PWM regulator, and which one is the better option for your solar setup. Understanding these differences can make a significant impact on the performance and overall cost-effectiveness of your solar power system.

What Is an MPPT Solar Charge Controller?

A solar charge controller is an important component of a solar power system. Its main function is to regulate the amount of charge going into the batteries from the solar panels. This is crucial because without proper regulation, the batteries can get damaged or overcharged. One type of solar charge controller is the MPPT (Maximum Power Point Tracking) controller, which has gained popularity in recent years due to its advanced features and efficiency compared to the traditional PWM (Pulse Width Modulation) controllers.

So, what exactly is an MPPT solar charge controller? MPPT is a technology that allows the controller to track and maintain the maximum power output from the solar panels. This means that the controller can detect the maximum voltage and current that the panels can produce at any given moment and adjust the charge accordingly. In simpler terms, an MPPT controller can convert excess voltage from the panels into usable amperage, resulting in up to 30% more efficiency compared to a PWM controller.

An MPPT controller also has the ability to work with a wider range of panel voltages, making it more versatile and suitable for different solar panel setups. This is because it can convert the higher voltage from the panels into a lower voltage that is required by the batteries, allowing for more flexibility in system design. Additionally, MPPT controllers can also work with different types of batteries, such as lithium-ion and lead-acid, making it a more compatible choice for different solar power systems.

One key feature of an MPPT solar charge controller is its advanced technology that allows it to constantly scan and adjust the voltage and current coming from the solar panels. This means that even if the temperature or shading conditions change, the MPPT controller can still optimize the power output from the panels. This is in contrast to PWM controllers, which have a fixed voltage set point and cannot adapt to changing conditions, resulting in lower efficiency.

Another advantage of MPPT controllers is their ability to communicate with a solar monitoring system. This allows users to remotely monitor and control their solar power system, making it easier to track its performance and detect any issues. Some MPPT controllers also have built-in features such as battery temperature sensors and low voltage disconnect, which can help prolong the life of the batteries and improve overall system efficiency.

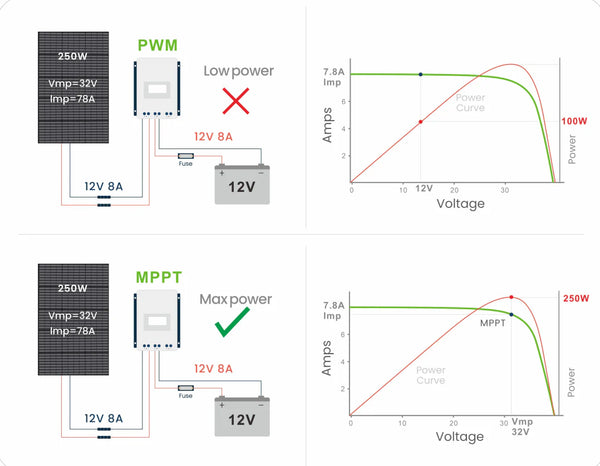

MPPT vs PWM Solar Regulators: Which Is Better?

Now that we understand what an MPPT solar charge controller is, let's compare it to the more traditional PWM controller to determine which one is better for your solar power system.

As mentioned earlier, one of the main advantages of an MPPT controller is its efficiency in converting excess voltage from the panels into usable amperage. This means that even in situations where the panels are not receiving direct sunlight or are partially shaded, the MPPT controller can still extract more power compared to a PWM controller. This makes MPPT controllers a more suitable choice for areas with inconsistent or less-than-optimal sunlight conditions.

Additionally, MPPT controllers also have a higher price point compared to PWM controllers. However, the long-term benefits of choosing an MPPT controller, such as increased efficiency and compatibility with different types of solar panels and batteries, can outweigh the initial cost.

while PWM controllers are still a reliable and cost-effective option for basic solar power systems, MPPT controllers offer more advanced features and higher efficiency, making them a better choice for larger and more complex systems. It is important to assess your specific needs and budget when choosing between the two, but investing in an MPPT controller can result in a more efficient and reliable solar power system in the long run.

an MPPT solar charge controller is a crucial component of a solar power system that utilizes advanced technology to optimize the power output from the solar panels. Compared to PWM controllers, MPPT controllers offer higher efficiency, versatility, and compatibility with different types of panels and batteries. an MPPT controller is a better choice for larger and more complex solar power systems, providing long-term benefits and improved performance.

How MPPT Solar Charge Controllers and Regulators Work

Before diving into the specifics of MPPT (Maximum Power Point Tracking) solar charge controllers and PWM (Pulse Width Modulation) solar regulators, it is important to have a basic understanding of a PV (Photovoltaic) system. A PV system consists of solar panels, charge controllers/regulators, batteries, and an inverter. The solar panels capture the sun's energy and convert it into electricity, which is then stored in batteries. The inverter then converts the stored energy into usable electricity for household or commercial use.

The role of charge controllers and regulators in a PV system is crucial as they control the flow of electricity from the solar panels to the batteries. They act as a safety net to prevent overcharging and damage to the batteries. Without a charge controller or regulator, the batteries would be at risk of being overcharged, which can significantly reduce their lifespan.

The process of charging and regulating in an MPPT solar charge controller and PWM solar regulator is quite different. In a PWM regulator, the solar panel's output voltage is reduced to match the battery voltage, resulting in a decrease in current flow. This charging method is less efficient as it wastes excess energy in the form of heat. On the other hand, MPPT solar charge controllers use a more sophisticated algorithm to track and adjust the voltage and current from the solar panels to match the battery's needs. This results in a more efficient charging process as it does not waste excess energy.

In order to protect the batteries from damage, both MPPT solar charge controllers and PWM solar regulators have built-in protection features. These features include overcharging protection, reverse current flow protection, and short-circuit protection. The overcharging protection ensures that the batteries do not get overcharged, thereby extending their lifespan. The reverse current flow protection prevents the batteries from discharging back into the solar panels at night when there is no sunlight. The short-circuit protection feature prevents any damage to the system in case of a short circuit.

One of the significant advantages of MPPT solar charge controllers over PWM solar regulators is their ability to monitor the performance of the PV system. MPPT controllers can provide real-time data on the solar panel's voltage and current, battery voltage and state of charge, as well as overall system efficiency. This monitoring capability allows for better management of the system and early detection of any potential issues.

while both MPPT solar charge controllers and PWM solar regulators play a vital role in a PV system, the MPPT controller is the more efficient and advanced option. Its ability to track and adjust the voltage and current from the solar panels to match the battery's needs makes it more suitable for charging and regulating the batteries. Additionally, its built-in protection features and monitoring capabilities make it a reliable and safe choice for any PV system.

Types of Solar Charge Controllers and Regulators

What Is the Difference Between MPPT and PWM Solar Charge Controller?
When it comes to using solar energy for our daily needs, solar charge controllers and regulators play a crucial role. They are responsible for regulating the charge coming from solar panels and ensuring the battery is not overcharged. There are two main types of solar charge controllers and regulators - MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation). Each type has its own advantages and disadvantages, and in this article, we will discuss them in detail.

1. PWM (Pulse Width Modulation)

PWM solar charge controllers are the most common type of charge controllers and have been used for many years. They work by reducing the voltage from the solar panels to match the voltage of the battery, thus preventing overcharging. The controller essentially turns on and off the charging current to maintain an optimal charging rate for the battery.
One of the biggest advantages of PWM controllers is their simplicity and affordability. They require less complex circuitry, making them less expensive than MPPT controllers. They are also easy to install and are suitable for small solar systems. However, PWM controllers have some limitations. They are not as efficient as MPPT controllers and can only convert 70-80% of the solar panel's energy into usable electricity. This means that a portion of the energy produced by the panels is lost and cannot be used to charge the battery.

2. MPPT (Maximum Power Point Tracking)

MPPT controllers are relatively new in the market but are gaining popularity due to their efficiency and ability to convert more solar energy into electricity. They work by tracking the maximum power point of the solar panels and then adjusting the voltage and current to match the battery's needs. This means that even if the solar panels produce a higher voltage than what the battery requires, the excess energy is not wasted and instead converted into usable electricity.
The biggest advantage of MPPT controllers is their efficiency. They can convert up to 99% of the energy produced by the solar panels into usable electricity, making them more efficient than PWM controllers. They are also better suited for larger solar systems and can handle a higher voltage input, making them more versatile. However, one downside of MPPT controllers is their cost. They are more expensive than PWM controllers, which may not be feasible for smaller solar systems.

Pros and Cons of Each Type

Pros of PWM Controllers:
- Simpler design and lower cost
- Suitable for small solar systems
- Easy to install
Cons of PWM Controllers:
- Less efficient than MPPT controllers
- Can only convert 70-80% of solar energy
- Not suitable for larger solar systems
Pros of MPPT Controllers:
- Highly efficient, can convert up to 99% of solar energy
- Can handle higher voltage input
- Suitable for larger solar systems
Cons of MPPT Controllers:
- More expensive than PWM controllers
- Not as easy to install

Benefits of an MPPT Solar Charge Controller

An MPPT solar charge controller, short for Maximum Power Point Tracking, is a type of solar regulator that is used to efficiently convert and regulate the power generated by a photovoltaic (PV) system. It works by constantly monitoring and adjusting the voltage and current output of the PV panels to ensure that they are operating at their maximum power point, thus maximizing the energy production. This advanced technology has several benefits over the traditional PWM solar regulators, making it a popular choice among solar system owners. Let's take a closer look at some of the major benefits of using an MPPT solar charge controller.

1. Higher Efficiency

One of the main advantages of an MPPT solar charge controller is its higher efficiency in converting solar energy into usable electricity. With its ability to constantly track and adjust the voltage and current output of the PV panels, it can achieve efficiency levels of up to 99%. This is a significant improvement compared to the 70-80% efficiency of PWM solar regulators. As a result, an MPPT solar charge controller can improve the overall performance of your PV system by up to 30%, even 40% in some cases.

2. Increased Energy Production

Due to its higher efficiency, an MPPT solar charge controller can also increase the energy production of your PV system. By operating at the maximum power point, it can extract more energy from the PV panels, especially in low light conditions. This means that you can generate more electricity from your solar panels, ultimately reducing your reliance on grid power and saving on your electricity bills.

3. Optimized Battery Charging

In addition to maximizing the energy production of your PV system, an MPPT solar charge controller also ensures that your batteries are being charged at the optimal voltage and current levels. This is important because overcharging or undercharging can damage your batteries and reduce their lifespan. With an MPPT solar charge controller, you can rest assured that your batteries are being charged efficiently, prolonging their life expectancy.

4. Ability to Handle High Voltage Panels

MPPT solar charge controllers are designed to handle high voltage PV panels, which are becoming increasingly popular in the market. These panels can produce higher outputs, but traditional PWM solar regulators are not capable of handling the high voltage levels. With an MPPT solar charge controller, you can take full advantage of these high voltage panels and optimize your PV system's energy production.

5. Flexibility in System Design

Another major benefit of using an MPPT solar charge controller is its flexibility in system design. Unlike PWM solar regulators, which require the PV panels to be matched with the battery bank in terms of voltage levels, an MPPT solar charge controller can handle a wider range of input voltages. This means that you have more options when it comes to the configuration of your PV system, giving you more control over your energy production and storage.

6. Improved Performance in Cold Conditions

During colder months, the performance of PV panels tends to decrease due to lower sunlight intensity and lower temperatures. However, an MPPT solar charge controller can overcome this issue by adjusting the voltage output of the panels to compensate for the decreased sunlight intensity. This ensures that your PV system continues to operate at its maximum power point, maintaining its efficiency and energy production even during cold weather.

In summary, an MPPT solar charge controller offers several key benefits over traditional PWM solar regulators, including higher efficiency, increased energy production, optimized battery charging, flexibility in system design, and improved performance in cold conditions. Although it may come at a higher cost, the potential energy savings and improved system performance make it a worthwhile investment for anyone looking to maximize the benefits of their PV system. So, when it comes to MPPT vs PWM solar regulators, it is clear that the MPPT technology is the better choice.



Are MPPT Solar Charge Controllers Worth it?

When it comes to harnessing solar energy for our everyday needs, solar charge controllers play a crucial role in the process. They are the gatekeepers to our solar panels, ensuring that the energy they produce is efficiently used and stored. Two popular types of solar charge controllers are the MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) regulators. But which one is better? Are MPPT solar charge controllers really worth the extra cost? Let's dive deeper into the topic to find out.

What is an MPPT Solar Charge Controller?

An MPPT solar charge controller is a sophisticated electronic device that is used to optimize the energy output of solar panels. It uses advanced algorithms and circuitry to track the maximum power point of the solar panel, which is the voltage and current combination that produces the highest amount of power. This allows the charge controller to extract the maximum amount of energy from the solar panels, even under low light conditions. The MPPT charge controller then converts this energy into a form that can be used to charge batteries or power electronic devices.

What is a PWM Solar Regulator?

A PWM solar regulator, on the other hand, is a simpler and less expensive type of charge controller. It works by rapidly switching the connected solar panel between its full output voltage and zero volts. This creates a pulsed current that is then smoothed out to a steady voltage before being used to charge the batteries. The main disadvantage of PWM regulators is that they are only able to operate at the maximum voltage of the solar panel, which may not always be the optimal point for power production.

MPPT vs PWM: Which is Better?

Now that we have a basic understanding of how both these solar charge controllers work, let's compare them to determine which one is better. The main difference between them lies in their ability to track the maximum power point of the solar panel. While PWM regulators can only operate at the maximum voltage point, MPPT charge controllers can track the maximum power point and adjust the voltage and current accordingly. This means that MPPT controllers are able to extract more energy from the solar panels compared to PWM regulators. In fact, studies have shown that MPPT charge controllers can increase the energy output by up to 30%.

Factors to Consider

While the higher efficiency of MPPT controllers sounds impressive, there are some factors to consider before deciding which type of charge controller is the right choice for you. Firstly, the cost of MPPT controllers is significantly higher than PWM regulators, which may not be feasible for everyone. Additionally, MPPT controllers require more complex circuitry and advanced components, which may also increase the maintenance and repair costs in the long run. Therefore, it is important to consider your budget and the overall cost-effectiveness before making a decision.

Is it Worth the Extra Cost?

After considering all the factors, the question still remains - are MPPT solar charge controllers really worth the extra cost? The answer depends on your specific needs and preferences. If you have a large solar system and want to maximize the energy output, then investing in an MPPT controller would be a smart choice. Similarly, if you live in an area with fluctuating weather conditions, an MPPT controller can make a significant difference in energy production. However, if you have a smaller system and are on a budget, a PWM regulator may suffice.

MPPT solar charge controllers are definitely worth considering if you want to make the most out of your solar panels. They offer higher efficiency and better performance compared to PWM regulators. However, it is important to weigh the cost and other factors before making a decision. Ultimately, the choice between MPPT and PWM controllers depends on your individual needs and budget. Whichever one you choose, make sure to do your research and invest in a reliable and high-quality product for optimal results.

Maximizing Solar Energy Generation with MPPT Controllers

As the world shifts towards renewable energy sources, solar power has emerged as a popular choice for its sustainability and cost-effectiveness. However, harnessing the full potential of solar energy requires the use of efficient equipment such as MPPT (Maximum Power Point Tracking) solar charge controllers. These controllers are crucial in optimizing the energy generated from solar panels and storing it efficiently for future use.
What is an MPPT Solar Charge Controller?
An MPPT solar charge controller is a vital component of a solar energy system that ensures maximum power output from the solar panels. It uses advanced algorithms and circuitry to track the maximum power point (MPP) of the solar panels and adjusts the voltage and current output to match the battery bank's requirements. This results in improved efficiency and up to 30% more power generation compared to traditional PWM (Pulse Width Modulation) controllers.

If you are installing a solar + storage system, the AC300 is a good choice.

The AC300 offers a range of features that make it stand out as a top-of-the-line MPPT charge controller, including:

• Turbo Charge: This feature allows the AC300 to reach an impressive 80% charge in just 45 minutes, combining AC and DC charging with a capacity of 5,400W.

• Long Battery Life: With lithium iron phosphate batteries, the AC300 can last for more than 3,500 cycles, providing reliable and long-lasting energy storage.

• UPS Mode: In the event of a power outage, the AC300 can switch to UPS mode in milliseconds, ensuring uninterrupted power supply.

• Easy Installation: The AC300 is designed for plug-and-play installation, eliminating the need for expensive installation fees.

• Energy Management: The AC300 has peak shaving and valley filling capabilities, making it ideal for areas with variable electricity prices between peak and off-peak periods.

• Solar Power Integration: By combining flexible solar panels with the AC300, users can significantly reduce their electricity costs and increase their energy independence.

• Noise Level: Unlike traditional fuel generators, the AC300 operates silently, with a noise level of only 45 dB.

• Portability: The AC300's modular design makes it easy to transport and set up, making it suitable for various applications such as home backup, RV power, and DIY workshops.

1.,
What is the main difference between MPPT and PWM solar charge controllers?

The main difference between MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) solar charge controllers lies in their methods of regulating the power output from solar panels. MPPT controllers use advanced algorithms and electronic circuitry to constantly track and adjust the voltage and current levels from the solar panels in order to optimize the power output. This allows them to efficiently convert and deliver more power to the battery, especially in low-light or varying weather conditions.

In contrast, PWM controllers use a simpler on/off switching technique to regulate the voltage output from the solar panels. This results in a less precise and efficient charging process, as the controller simply turns on and off to maintain a pre-set voltage level, which can lead to energy loss and decreased battery lifespan.

In summary, while both MPPT and PWM controllers regulate the voltage and current from solar panels to charge a battery, MPPT controllers are more advanced and efficient in converting and delivering the maximum power output, making them the better choice for solar systems with varying environmental conditions.

2. How does an MPPT solar charge controller maximize solar panel efficiency?

An MPPT (Maximum Power Point Tracking) solar charge controller maximizes solar panel efficiency by constantly adjusting the input voltage and current to find the optimal operating point, also known as the maximum power point (MPP). This is achieved through a process called "perturb and observe," where the controller slightly changes the input voltage and monitors the resulting change in power output.

In comparison, a PWM (Pulse Width Modulation) solar regulator simply switches the solar panel on and off to maintain a constant battery voltage, resulting in a less efficient use of the available solar power. This is because the PWM controller does not actively seek out the MPP, instead it operates at a fixed voltage and allows the excess energy to be wasted or unused.

The MPPT charge controller not only finds the MPP, but also maintains it, even when weather and shading conditions change. This allows for a higher overall efficiency of the solar panel, as well as a faster battery charging time. By constantly adjusting the input voltage and current to match the MPP, an MPPT controller can extract 20-30% more power from the solar panel compared to a PWM controller.

In addition, an MPPT charge controller also has the ability to convert excess voltage into additional current, further increasing the efficiency of the solar panel. This is particularly beneficial for larger solar systems, as it allows for the use of smaller, less expensive solar panels without compromising on power output.

an MPPT solar charge controller maximizes solar panel efficiency by actively seeking out and maintaining the MPP, resulting in a more efficient use of available solar power compared to PWM controllers.

3. What are the key benefits of using an MPPT solar charge controller over a PWM controller?

There are several key benefits of using an MPPT (Maximum Power Point Tracking) solar charge controller over a PWM (Pulse Width Modulation) controller. The first and most significant benefit is the increased efficiency of the MPPT controller. With its advanced tracking algorithm, an MPPT controller is able to accurately track the maximum power point of the solar panels, resulting in a higher conversion efficiency of up to 99%. This means that more energy can be harvested from the solar panels, leading to increased overall system efficiency.

Another advantage of an MPPT controller is its ability to work with higher voltage solar panels. A PWM controller tends to work best with solar panels that have a voltage close to the battery bank voltage. However, MPPT controllers can handle much higher voltage inputs, allowing for the use of longer wire runs and larger solar arrays without compromising efficiency.

In addition, MPPT controllers have the ability to charge different types of batteries, such as lithium-ion or gel batteries, by adjusting the charging parameters accordingly. This versatility makes them suitable for a wider range of applications.

Furthermore, MPPT controllers typically come with advanced monitoring and data logging features, allowing for better system performance analysis and troubleshooting. They also have the ability to automatically adjust the charging parameters based on environmental conditions, such as temperature or shading, ensuring optimal charging at all times.

while PWM controllers have been the traditional choice for solar charge controllers, the key benefits of using an MPPT controller, such as increased efficiency, versatility, and advanced features, make it the preferred option for many solar power systems.

An MPPT (Maximum Power Point Tracking) solar charge controller is a type of charge controller that uses advanced technology to maximize the efficiency of your solar panel system. This is achieved by constantly adjusting the charging parameters to find the optimum voltage and current levels that will produce the maximum power output from your solar panels.
On the other hand, PWM (Pulse Width Modulation) solar regulators work by simply turning the flow of electricity on and off between the solar panels and the batteries, which is why they are also called "switching regulators". This results in a more basic charging process compared to MPPT regulators.
So, which one is better? The answer depends on your specific needs and the type of solar system you have. MPPT controllers are generally more expensive, but they offer higher efficiency rates, especially in colder and cloudy weather conditions. They are also ideal for larger solar systems with higher voltage and current ratings.
On the other hand, PWM controllers are better suited for smaller systems with lower power output requirements. They are also more affordable and simpler to install, making them a popular choice for first-time solar users.
if you want to get the most out of your solar panel system, an MPPT solar charge controller is the way to go. However, if you have a smaller system and want a budget-friendly option, a PWM regulator may be a better choice. Whichever type of controller you choose, make sure to do your research and consult with a professional to ensure you get the best option for your specific needs. With the right controller, you can enjoy a more efficient and sustainable solar energy system for years to come.
In summary, when it comes to MPPT vs PWM solar regulators, the decision ultimately depends on the size and needs of your solar system. While MPPT controllers offer higher efficiency, PWM controllers are more budget-friendly and simpler to install. Whichever type you choose, be sure to research and consult with a professional to make an informed decision. With the right controller, you can maximize the potential of your solar panel system and contribute to a more sustainable future.
