Why BLUETTI Solar Panels?
Power, Reliability, and Convenience.
Best-in-Class Efficiency
Get more power from every ray. Our top-tier monocrystalline panels offer up to 24.7% efficiency, so you can charge faster in the same sunlight.
Built to Last
Made with UV-resistant ETFE and an IP65/IP67 rating, these panels are designed to endure dust, water sprays, and long-term outdoor use.

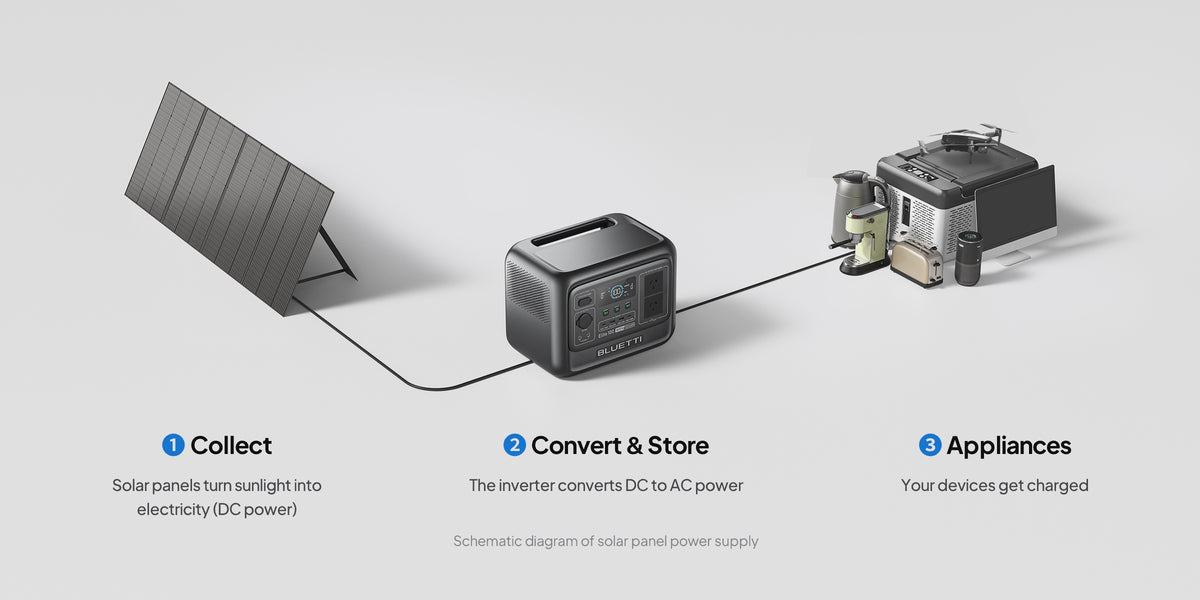

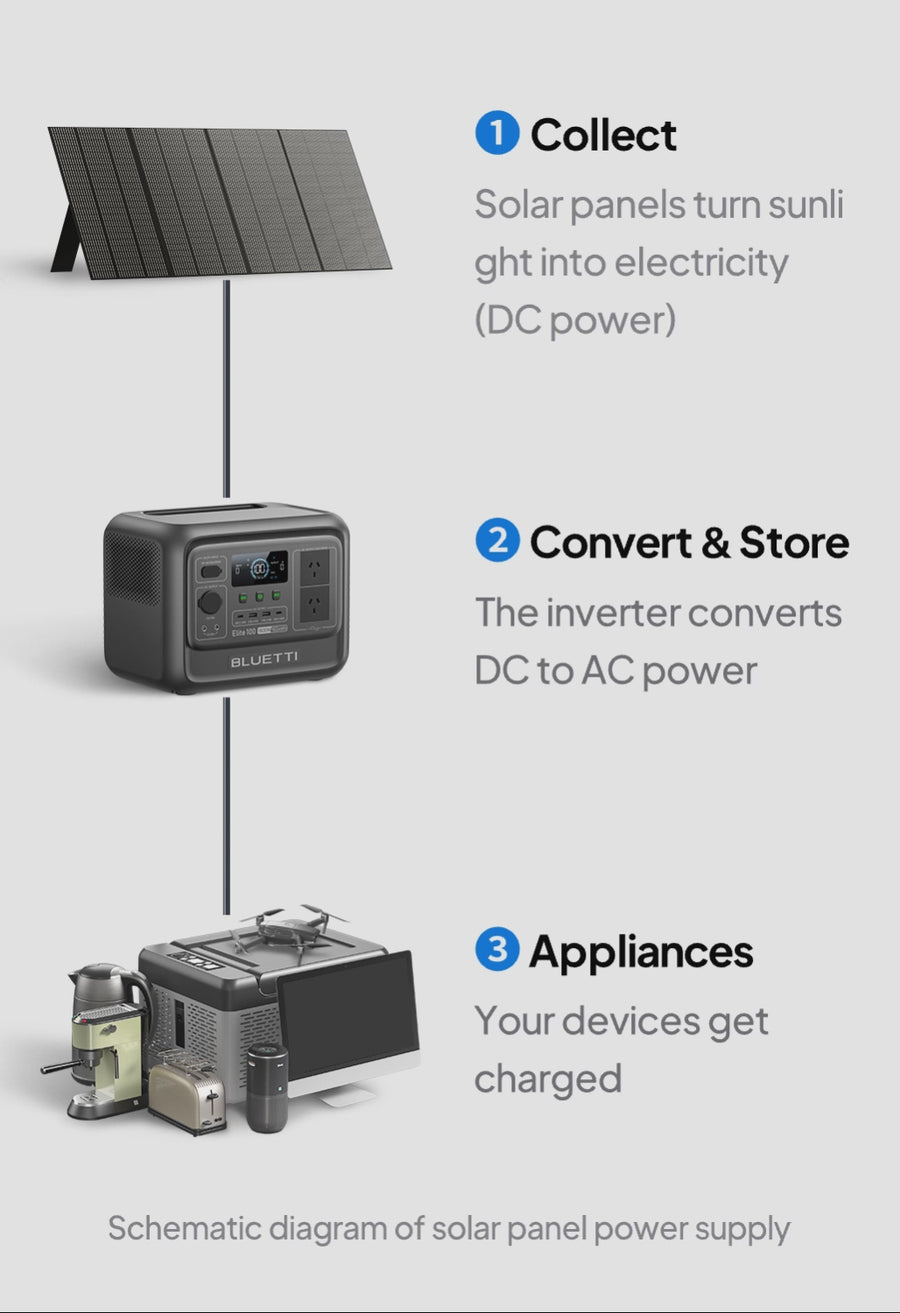

How a Solar Kit Works?
Solar Power for Every Need
Small to mighty, we've got you covered.

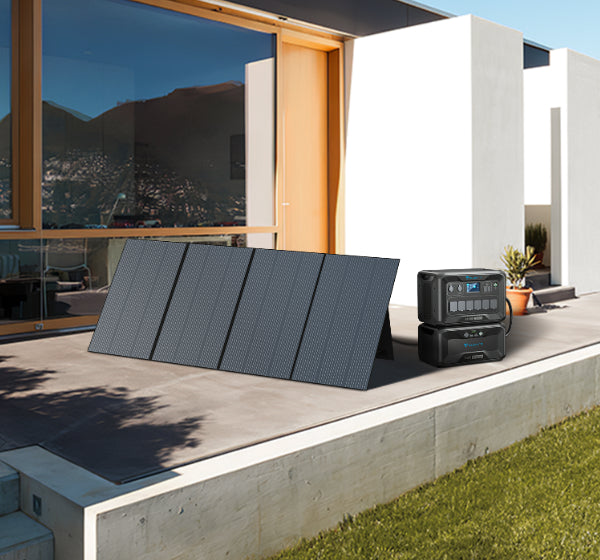

350W Solar Panel
This 350W solar panel will be shipped randomly,please refer to the actual model and user manual.Do NOT mix different models.
47V&9.3A
OCV&Isc
34.8lbs/15.8Kg
Weight
2372*928mm
Unfolded
593*928mm
Folded
200W Solar Panel
A versatile panel for those who need a solid balance between size and performance, ideal for RVs, boats, or small homes.
24.6V&10.8A
OCV&Isc
8.14kg/17.15lbs
Weight
608*2105mm
Unfolded
585*608*45mm
Folded
120W Solar Panel
Compact and portable, designed for easy setup on the go, from camping trips to outdoor adventures.
24.6V&6.6A
OCV&Isc
11.13lbs/5.36Kg
Weight
500*1760mm
Unfolded
500*500*45mm
Folded
Get Your Ideal Solar Kit Fast
Choose One Type of Solar Panel
-
350W Solar Panel
-
200W Solar Panel
-
120W Solar Panel

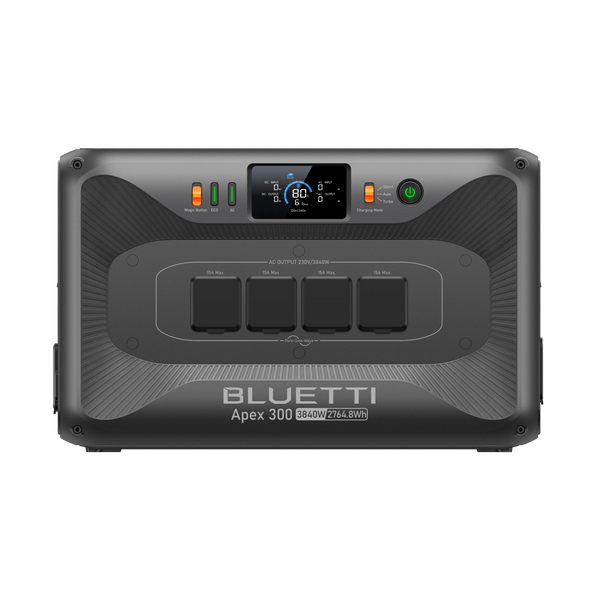

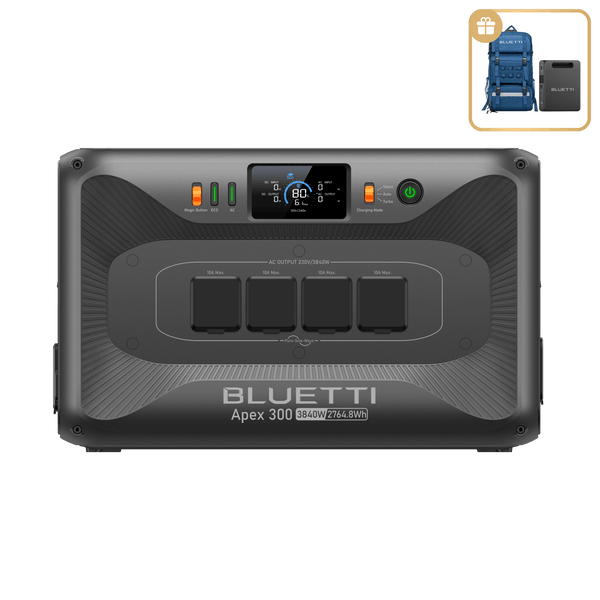

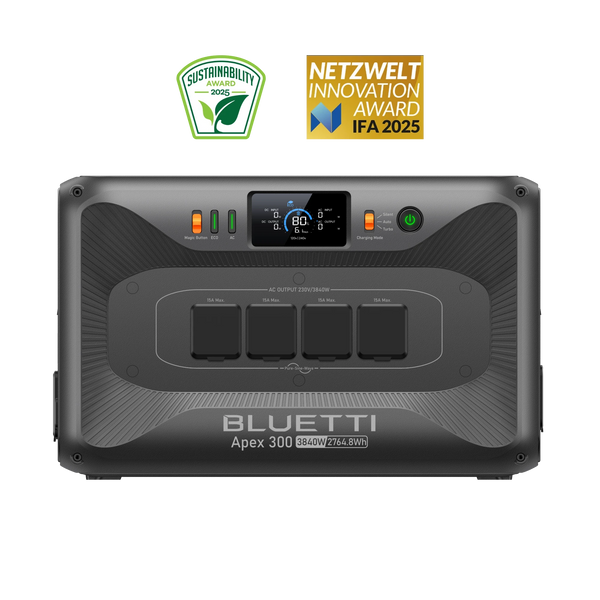

- Apex 300
- Elite 200 V2
- AC180
11.3
Hrs
Recharging Time
2,764.8
Wh
Sustainable Energy Saving
Laboratory data. For reference only.
Solar That Fits Your Life
Frequently Asked Questions
-
- Q1: What is a solar panel?
- A1: A solar panel captures sunlight and converts it into electricity. BLUETTI panels use high-efficiency monocrystalline cells to make the most of every ray—delivering reliable power wherever there's sun.
- Q2: Are BLUETTI solar panels waterproof?
- A2: Yes. IP65 is rated for junction box. Do not expose the solar panel to rain or snow.
- Q3: Can BLUETTI solar panels charge third-party power stations?
- A3: Yes, as long as they have MC4 connectors and match the panel's voltage and current range.
- Q4: Can different types of solar panels be used together?
- A4: No. Only use the same model of solar panels within one system. For example, charging a BLUETTI AC180 with 2× SP120 panels works perfectly. Mixing different models—like 1× SP120 and 1× PV60F —is not recommended and may cause system issues.
- Q5: Can BLUETTI solar panels be connected in series or parallel?
- A5: Yes. BLUETTI panels support both. Please note that series connection increases voltage while parallel connection increases current. Always match the total output to your power station's input limits.
- Q6: How many panels can be connected to a BLUETTI power station?
-
A6:
It depends on your model's input limits, panel specs, and wiring method. For example, the AC200L accepts up to 1,200W solar input, with an input voltage range of 12V to 145V and a maximum current of 15A.
If you use 350W solar panels with an open-circuit voltage (Voc) of 43.8V and a short-circuit current (Isc) of 10.1A, wiring these panels in series is best to maximize charging efficiency. Series connection increases voltage while current stays about the same.
Calculating the max number of panels:
145V ÷ 43.8V ≈ 3 panels in series (total voltage 131.4V, below the 145V limit)
Current stays at 10.1A (below the 15A limit)
Total power: 3 × 350W = 1,050W (below the 1,200W max input)
So, you can safely connect up to three 350W panels in series to the AC200L.
- Q7: How to maximize solar panel efficiency?
- It depends on what you plug in. Running a 100W light? Around 10 hours. A 500W blender? About 2 hours. With solar panels, you can keep topping it off during the day.
- Q8: Can BLUETTI power stations be charged with solar and AC power simultaneously?
- A8: Yes. Many BLUETTI models allow dual input. For example, Elite 200 V2 supports up to 2400W combined input, charging up to 80% in just 1 hour.
- Q9: Do solar panels work at night?
- A9: No, they need sunlight. But you can store energy in your power station during the day and use it anytime—even after dark.
