BLUETTI PV200 Solar Panels | 200W

A$749.00
A$749.00 A$799.00 - A$50.00

⏰Winter Sale Ends in

Days
:
Hours
:
Minutes
:
Seconds

749 reward BLUETTI BUCKS
Join Our Loyalty Program!
Earn 1 BLUTTI BUCK for every A$1 spent. The higher your VIP TIER, the more BUCKS you'll earn.

Redeem your BLUETTI BUCKS for:
Discounts on your next purchase
Exciting BLUETTI Lifestyle gifts
  • Monocrystalline Solar Cells With Up to 23.4% Efficiency
  • Long-lasting ETFE Coating
  • Foldable & Portable
  • Compatible With Most Solar Generators with MC4 Connectors
  • 12-month Warranty

Product Model:


30 Days Price Match Guarantee

BLUETTI guarantees that we will refund you the difference if you find a lower price from us within 30 days of your purchase.

Price Difference Refund Requirements:

1. Valid purchase history within 30 days.

2. Email us a screenshot of the lower price.

3. Promotion period only.


Free
Local Shipping

1-year Hassle Free
Warranty

Lifetime Customer
Support

Solar Charge Anywhere

Connect it and leave it. BLUETTI 200W solar panel is set to keep your solar generators juiced as long as there is sunlight available.

23.4% High Efficiency

Built with monocrystalline solar cells, the PV200 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.

Built to Last

The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)

Specifications

PREVIEW


POWER


Power:
200W

Lamination:
ETFE (Ethylene tetrafluoroethylene)

Cell Type:
Monocrystalline Silicon

Cell Efficiency:
Up to 23.4%

Voltage at Max Power(Vmp):
20.5V

Current at Max Power(Imp):
9.7A

Open Circuit Voltage(OCV):
26.1V

Short Circuit Current(Isc):
10.3A

GENERAL


Connector:
Standard MC4 Connector

Weight:
16.1lbs (7.3kg)

Dimensions (Unfolded):
23.2 × 89.2in (59 × 226.5cm)

Dimensions (Folded):
23.2 × 24.8inch (59 × 60cm)

Operating Temperature::
14-149℉ (-10-65℃)

Best Working Temperature:
77℉ (25℃)

Cable Length:
118in (3m)

Certifications:
FCC, CE, ROHS

Warranty:
12 Months

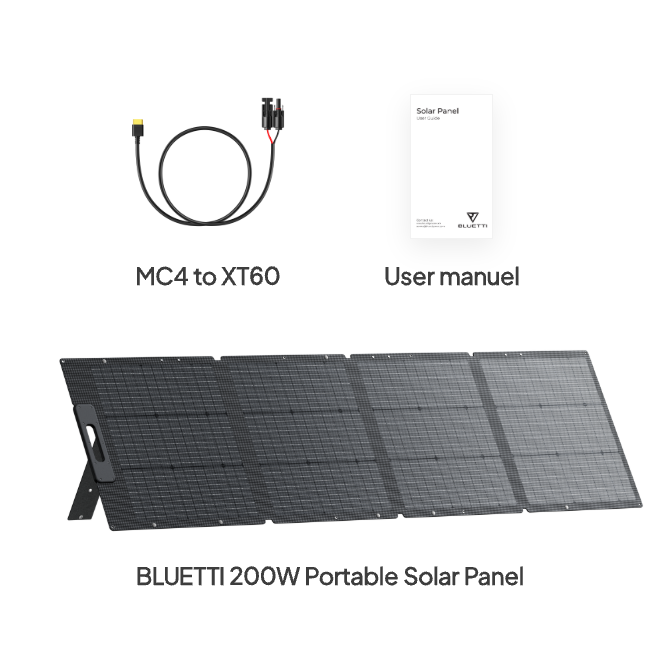

IN THE BOX


User Manual

BLUETTI PV200 Solar Panels | 200W User Manual

Download Download Now >

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Customer Reviews

Based on 28 reviews
82%
(23)
18%
(5)
0%
(0)
0%
(0)
0%
(0)
D
Denis Bonnie

I have not used it as yet.

R
Ron

Love it … was pushing 170 watts on a cloudy day !!

S
Simon
PV200

When we received the panel, we ran our AC70 down almost halfway. The panel had it topped back up in just over 2 hours, even though it was partly cloudy. Well done Bluetti.

G
Gordon Massey
BLUETTI PV200 Solar blanket

Haven't had to use the solar blanket in ernest yet.
I have installed a Victron 75/15 mppt controller in the van and an Anderson plug external for the solar panel to connect to. I had to purchase a mc4 to anderson extension lead. The test worked perfectly.
In terms of the construction the unit is excellent. The materials appear to be good quality. The handle is strong. Once I had worked out the system for opening the panel it now is as easy as pie to set up and close down.

P
Paul

165 watts on a winters day from a 200w portable panel is pretty fantastic. Can’t wait for summer.

FAQS

  • Q1: What can this PV200 charge?

    A:

    A: The PV200 can work with most power stations on the market,

    1pcs BLUETTI 200W solar panel can quickly charge the BLUETTI EB55 within 3.5-4hrs.

    1pcs BLUETTI 200W solar panel can quickly charge the BLUETTI EB70 within 4.7-5.2hrs.

    2pcs BLUETTI 200W solar panels can quickly charge the Bluetti EB150 about 5.5-6 hours by connecting them in series.

    3pcs BLUETTI 200W solar panels can quickly charge the BLUETTI AC200P within 4.5-5 hours by connecting them in series.

    3pcs BLUETTI 200W solar panels can quickly charge the BLUETTI AC200Max within 4.4-5hrs by connecting them in series.

    6pcs BLUETTI 200W solar panels can quickly charge the BLUETTI AC300+2*B300 within 6.5-7hrs by connecting them in parallel.

    Besides the BLUETTI power station (AC200P, EB150, AC200, AC200MAX, AC300), it can also be used with other brands. If you have your own adapter (need to buy adapter yourself).

    Friendly Note: which means that if the total power of your devices exceeds 700W.

  • Q2: Is it waterproof?

    A:

    Yes. IP65 is rated for junction box. Do not expose the solar panel to rain or snow.

  • Q3: What is the difference between the PV200 and SP200?

    A:

    Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.*

    * Conclusion from BLUETTI Lab, for reference ONLY.

  • Q4:BLUETTI PV200 compatibility.

    A:

    Most solar power stations on the market, and one PV200 solar panel is ideal for BLUETTI EB55/EB70/EB3A portable power stations.

  • Q5:Can I use BLUETTI Solar Panel to charge the third-party power station?

    A:

    Yes, as long as they

    (1) have MC4 connectors;

    (2) support the output specifications of BLUETTI solar panels.

  • Q6:How do I choose solar panels for my solar generator?

    A:

    Review the PV input requirements of the solar generator.

    Review the output specifications of solar panels.

    Calculate the total voltage, current, and wattage of solar panels.

    Consider the solar input connectors.

  • Q7: Can I use different size solar panels?

    A:

    No. Your solar panels should be the same type and rating from one brand. For example, two PV200 to charge BLUETTI AC200P is acceptable, and one PV200 + one SP200 is unacceptable.

  • Q8: Does the panel have any USB ports you can directly plug into?

    A:

    No. BLUETTI PV200 only has MC4 connectors.

  • Q9: How do I maximize the efficiency of solar panels?

    A:

    These steps will help you get the most out of your solar panels:

    1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.

    2. Avoid shadow areas: Any amount of shadow will affect solar panel production.

    3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.

    4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.

  • Q10: Is the solar charge controller mode MPPT or PWM?

    A:

    MPPT.

  • Power
    Lamination
    Cell Efficiency
    Open Circuit Voltage(OCV)
    Short Circuit Current(Isc)
    Connector
    Waterproof Rating
    Dimensions (Unfolded)
    Dimensions (Folded)
    Weight
  • 200W
    ETFE (Ethylene tetrafluoroethylene)
    Up to 23.4%
    26.1V
    10.3A
    Standard MC4 Connector
    IP65
    89.2*23.2 in / 2,265*590mm
    23.2*24.8 in / 590*600 mm
    16.1 lbs (7.3 kg)
  • 200W
    ETFE (Ethylene tetrafluoroethylene)
    Up to 24%
    22.9V
    11A
    Standard MC4 Connector
    IP67
    81.6*26.8*1.3 in / 2,075*681*35mm
    26.8*21.7*2.5 in / 681*553*65 mm
    19.1 lbs (8.7 kg)
  • PV200
    A$749.00
    Power
    200W
    Lamination
    ETFE (Ethylene tetrafluoroethylene)
    Cell Efficiency
    Up to 23.4%
    Open Circuit Voltage(OCV)
    26.1V
    Short Circuit Current(Isc)
    10.3A
    Connector
    Standard MC4 Connector
    Waterproof Rating
    IP65
    Dimensions (Unfolded)
    89.2*23.2 in / 2,265*590mm
    Dimensions (Folded)
    23.2*24.8 in / 590*600 mm
    Weight
    16.1 lbs (7.3 kg)
  • MP200
    A$749.00
    200W
    ETFE (Ethylene tetrafluoroethylene)
    Up to 24%
    22.9V
    11A
    Standard MC4 Connector
    IP67
    81.6*26.8*1.3 in / 2,075*681*35mm
    26.8*21.7*2.5 in / 681*553*65 mm
    19.1 lbs (8.7 kg)
