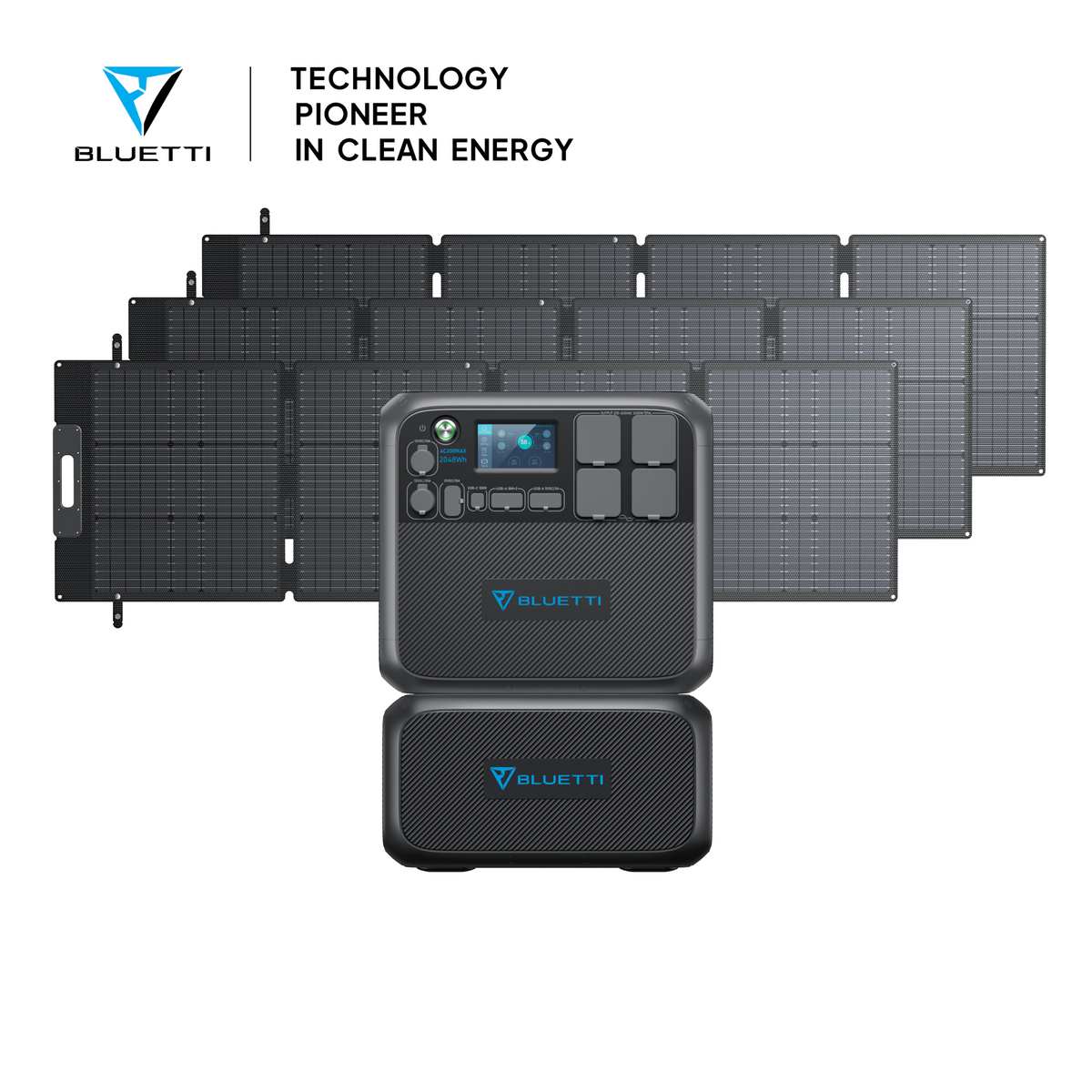

BLUETTI AC200MAX + 1*B230 + Solar Panels | Solar Generator Kit

A$7,296.00

A$7,296.00 ~~A$7,796.00~~ - A$500.00

🔥Earth Day Sale Ends in

Days

:

Hours

:

Minutes

:

Seconds

5895 reward BLUETTI BUCKS

2,200W AC Pure Sine Wave Inverter (4,800W Surge).
2,048Wh Capacity.
LiFePO₄ Battery with 3,500+ Life Cycles to 80%
Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
900W Max. Solar Input
1400W Max. Fast Dual Charging (Solar + AC Adapter)
Smart Control & Monitor in BLUETTI App

Tech Specs

Bundle:

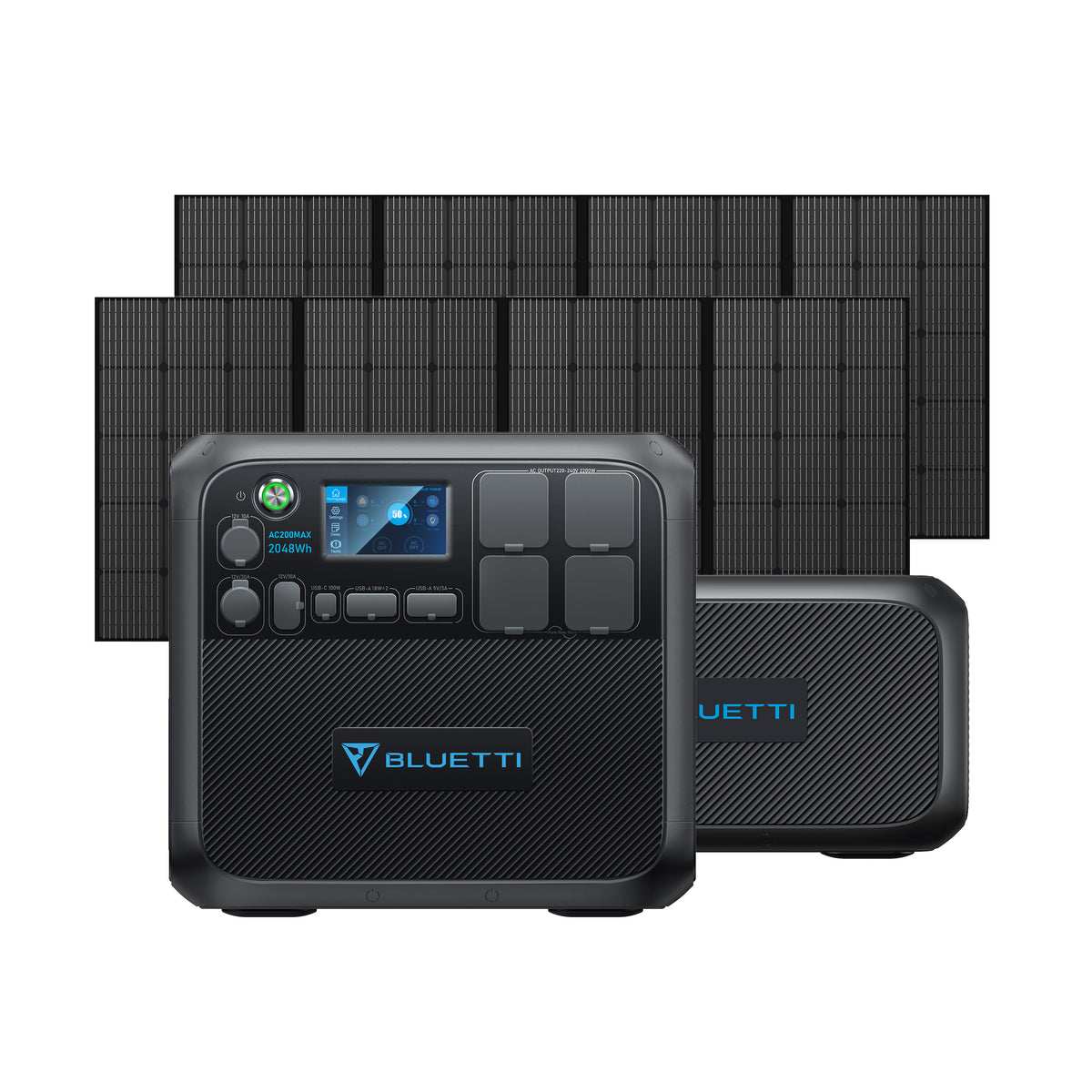

AC200MAX+1*B230+2*PV350 | 2200W, 4096Wh, 700W Solar Kit
AC200MAX+1*B230+3*PV200 | 2200W, 4096Wh, 600W Solar Kit

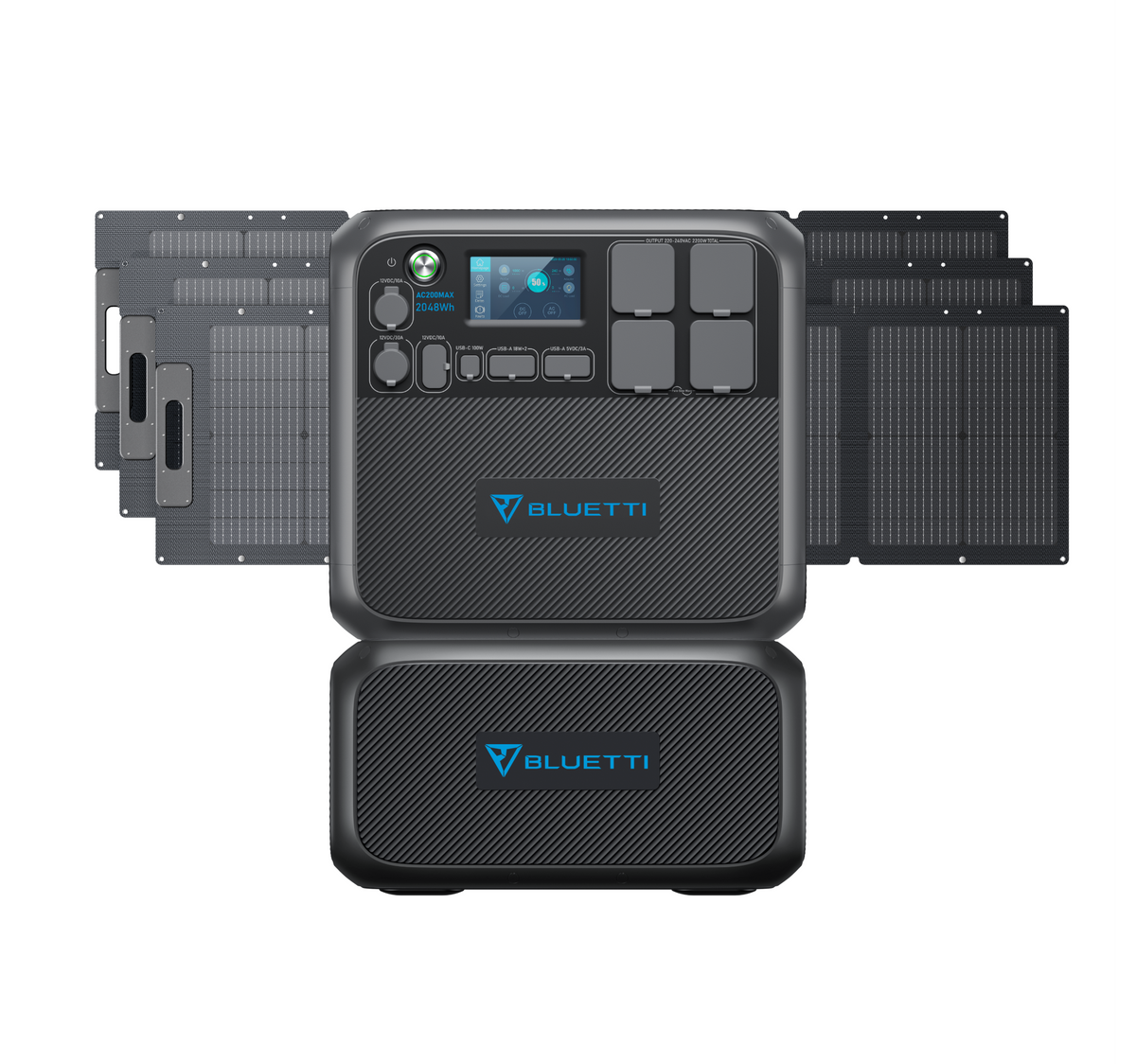

AC200MAX+1*B230+3*PV120 | 2200W, 4096Wh, 360W Solar Kit

Variants:

Quantity :

Free
Local Shipping

2+2-year Hassle Free
Warranty

Lifetime Customer
Support

SMALL CHANGE, HUGE LEAP

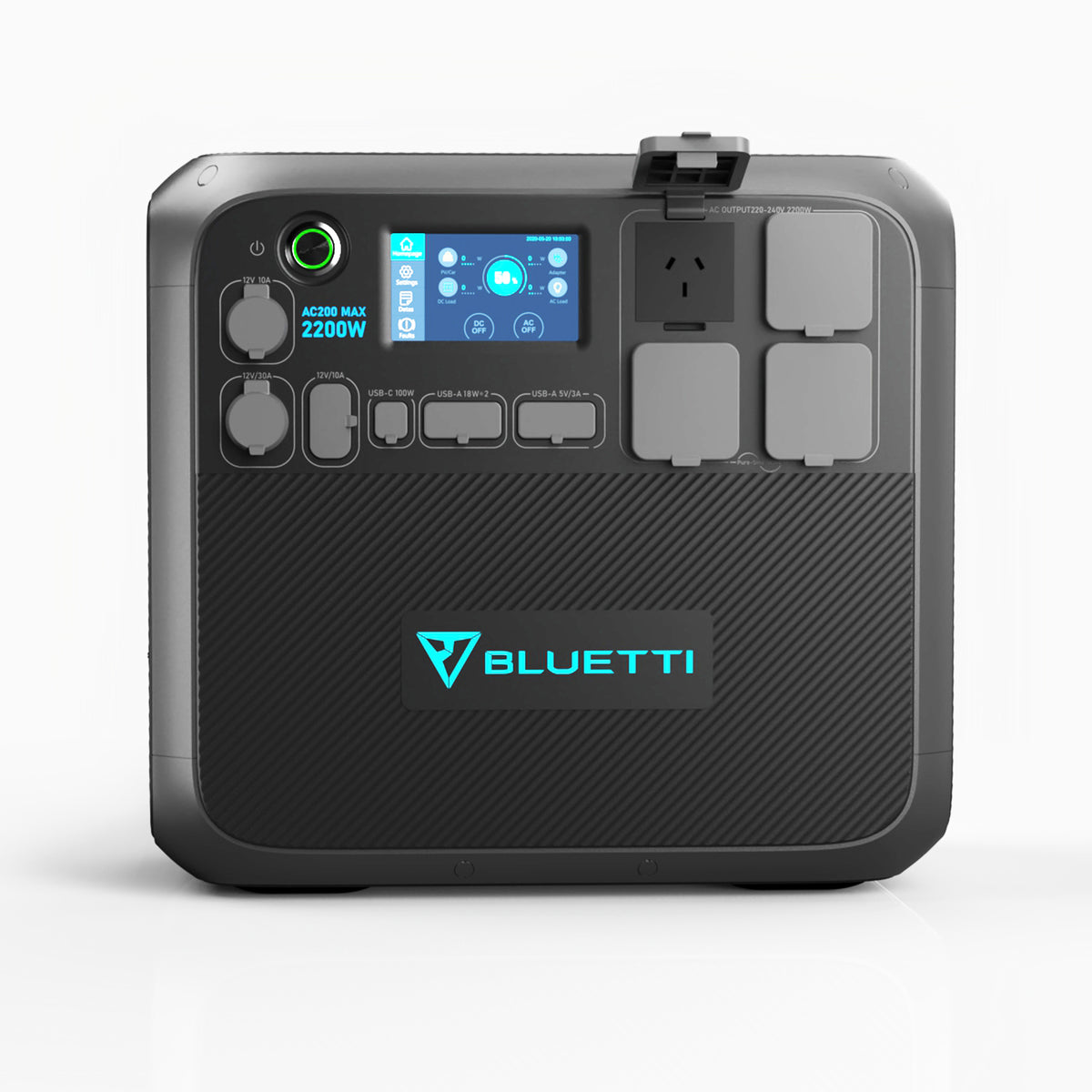

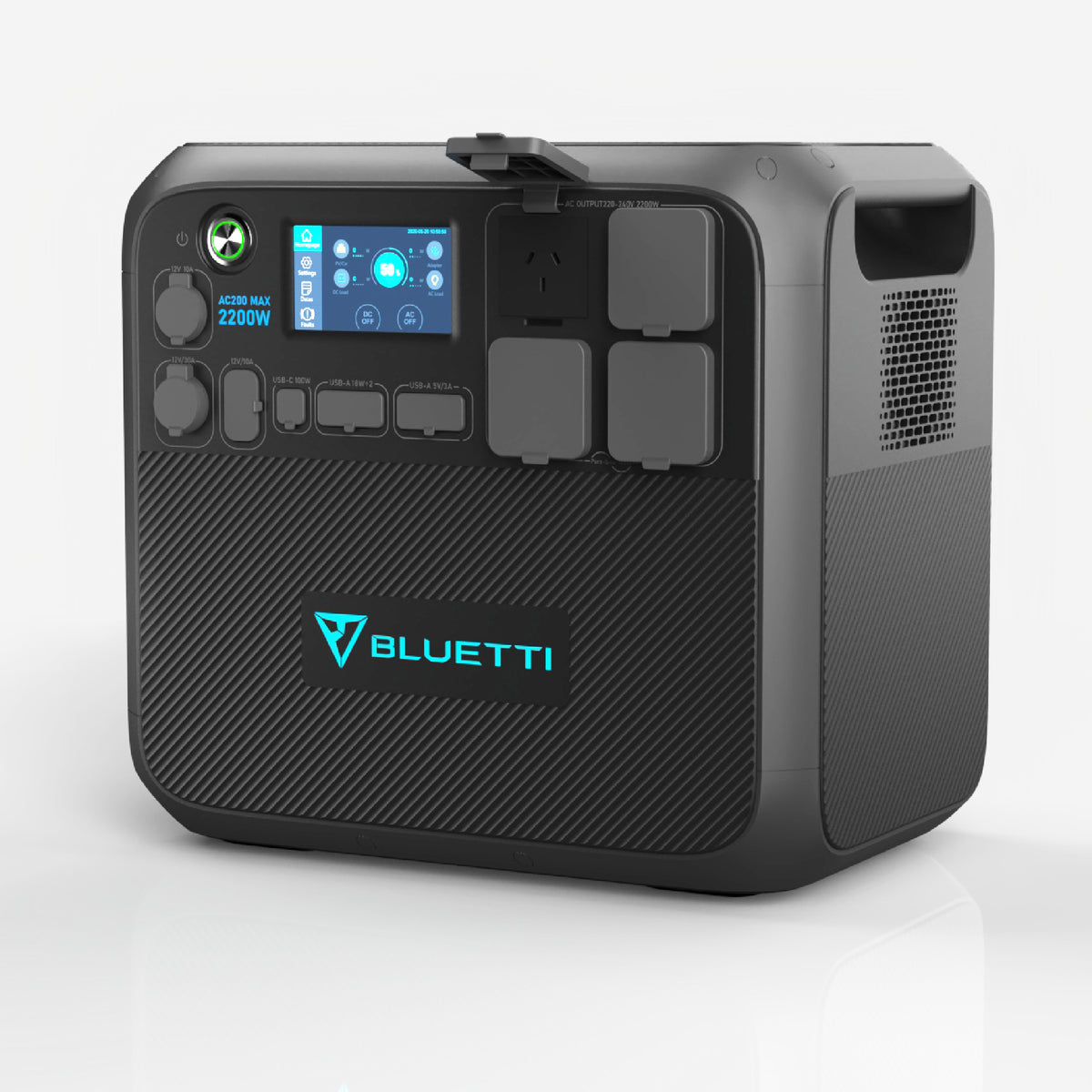

It’s here: The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

Less To Spend, More To Love

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

Get Charged In Anyway You Prefer

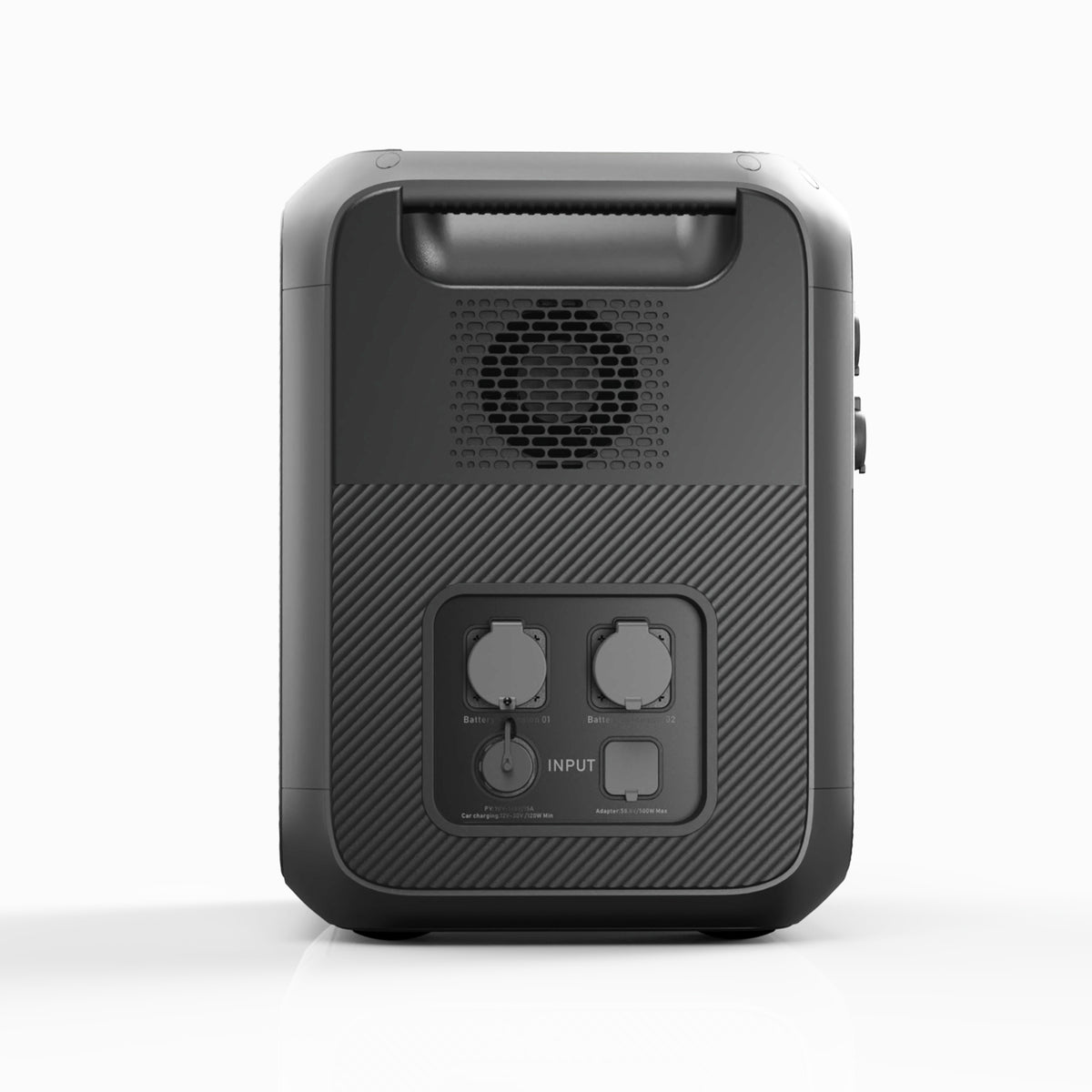

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

Incomparable Outlet Versatility

With AC200MAX’s 15 outlets, you get to run all your needs simultaneously without breaking a sweat.

Give Your Devices More Runtime

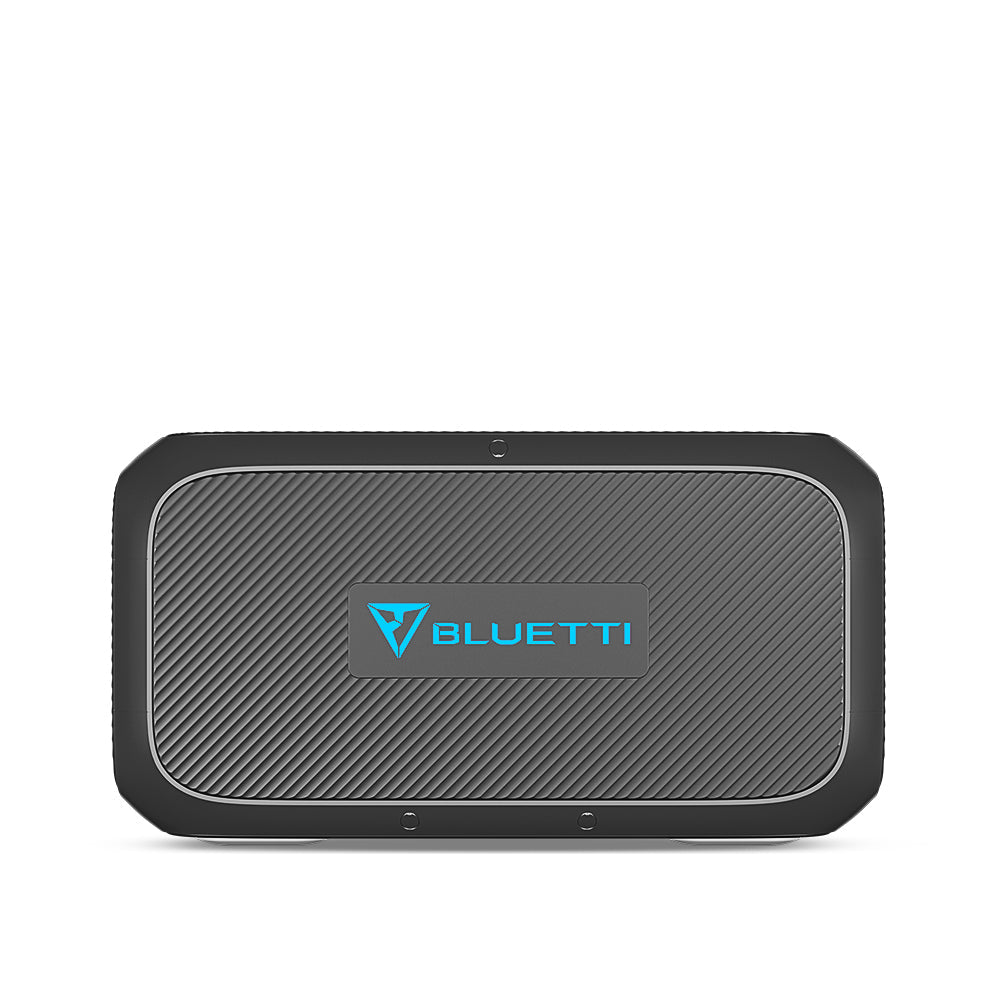

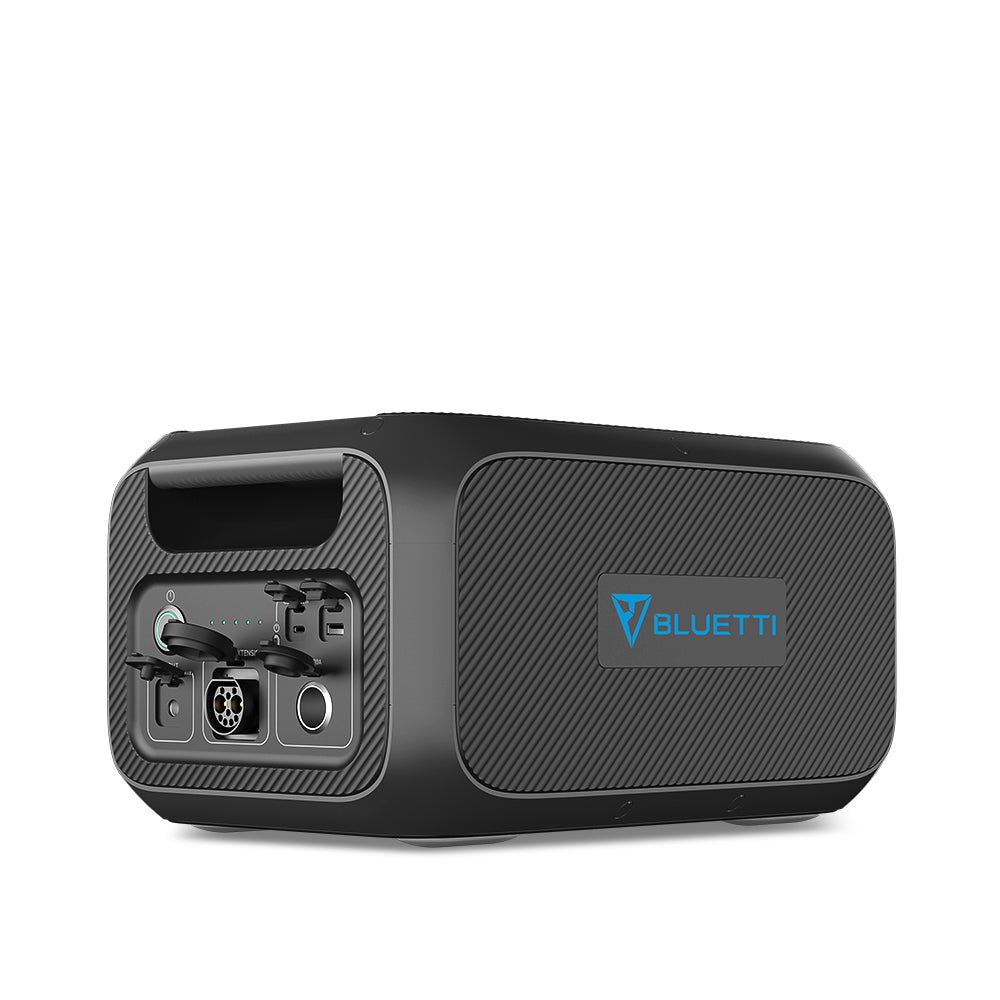

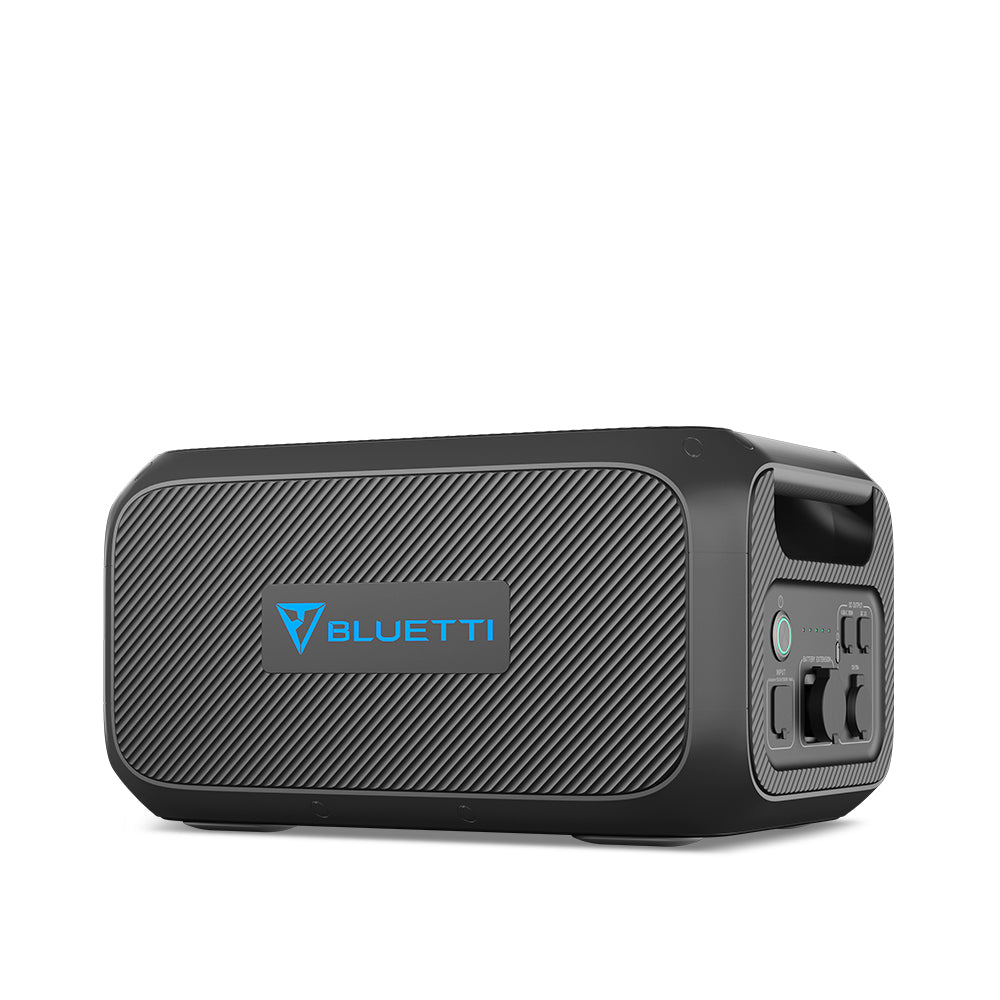

B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.

Never Run Out of Power

Suitable for various occasions

Other Top Rated Products

Specifications

BATTERY INFO

Capacity:

2048Wh (51.2V,40Ah)

Cell Chemistry:

LiFePO4 (Lithium Iron Phosphate)

Lifecycle:

3,500+ Cycles to 80% Original Capacity

Shelf-life:

Recharge to 80% Every 3-6 Months

Management System:

MPPT Controller, BMS, etc

OUTPUT

AC Output:

4 x 220V-240V,2200W In Total

Inverter Type:

Pure Sine Wave

Surge Power:

4800W

USB-C Port:

1 x 100W Max.

USB-C Port:

2 x 5V/3A USB-A
2 x 18W USB-A

12V DC Outlets:

1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.

Wireless Charging Pad:

2 x 15W Max. (For Each)

INPUT

AC Adapter Input:

500W.

Solar Input:

900W Max,OCV 10-145VDC, 15A

Car Input:

12/24V from Cigarette Lighter Port

Max Input:

1,400W, with AC+Solar Input

RECHARGE TIMES

AC Adapter (500W):

≈5.5~6 Hours

Solar (900W):

≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W):

≈10 or 20 Hours

AC Adapter + Solar (1400W):

≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)

Dual AC Adapters (1000W):

≈3~3.5 Hours (Extra adapter is REQUIRED)

GENERAL

Scalability:

Expandable w/ Up to 2 x B230 or 2 x B300

Pass-through Charging:

Yes

Weight:

61.9lbs (28.1kg)

Dimensions (LxWxD):

16.5 x 11 x 15.2 in ( 42 x 28 x 38.65cm)

Operating Usage Temperature:

-4-104℉ (-20-40℃)

Storage Temperature:

14-113℉ (-10-45℃)

Certification:

UL, CEC, DOE, FCC, CA Prop 65

Warranty:

48 Months

In The Box

User Manual

BLUETTI AC200MAX + 1*B230 + Solar Panels | Solar Generator Kit User Manual

Download Now >

FAQS

Q1: How many B230 or B300 battery modules can connect with the AC200MAX?

A:

2 B230/B300. (Battery expansion cables are sold separately.) .
Q2: Can the B230 battery module be used alone?

A:

Yes, it also provides standalone power source with a 100W USB-C, a USB-A and a 12V DC output port.
Note: The total power of your devices should NOT exceed 700W.
Q3: How can I charge B230?

A:

1. 500W AC Adapter(Sold separately)

2. Car cigarette lighter output or solar panels(BLUETTI D050S DC charging enhancer is sold separately.)
Q4: Does AC200MAX support split phase bonding?

A:

No.
Q5: Can AC200MAX be remotely controlled via APP?

A:

Yes. You can use BLUETTI App to monitor and control the AC200MAX.
Q6: Is the solar charge controller mode MPPT or PWM?

A:

MPPT.
Q7: How can I charge AC200MAX?
A:
- 1. 500W Adapter: 4.6~5.1hrs
- 2. Dual Adapters(1000W in total): 3~3.5hrs
- 3.Solar Panel(900W): 2.8~3.3hrs; Open circuit voltage:10-145V
- 4. Adapter+Solar Panel(1400W): 2~2.5hrs
- 5. 12V/24V Car Cigarette Lighter
- 6. 12V/24V Lead-acid Battery
- 7. Generator
Q8: Does AC200MAX have UPS function？

A:

No.
Q9: How long will AC200MAX power my device?

A:

Working time (estimation) = 2048Wh* 0.85 / operating power of your device. (0.85=Conversion Rate) Kindly note the actual working time may vary under different circumstances.
Q10: Can I use third party solar panel and what conditions need to be met?

A:

Yes, as long as the specs of solar panels you're using fall in below range:

1. Total open circuit voltage(OCV): 10-145V
2.With MC4 connectors
